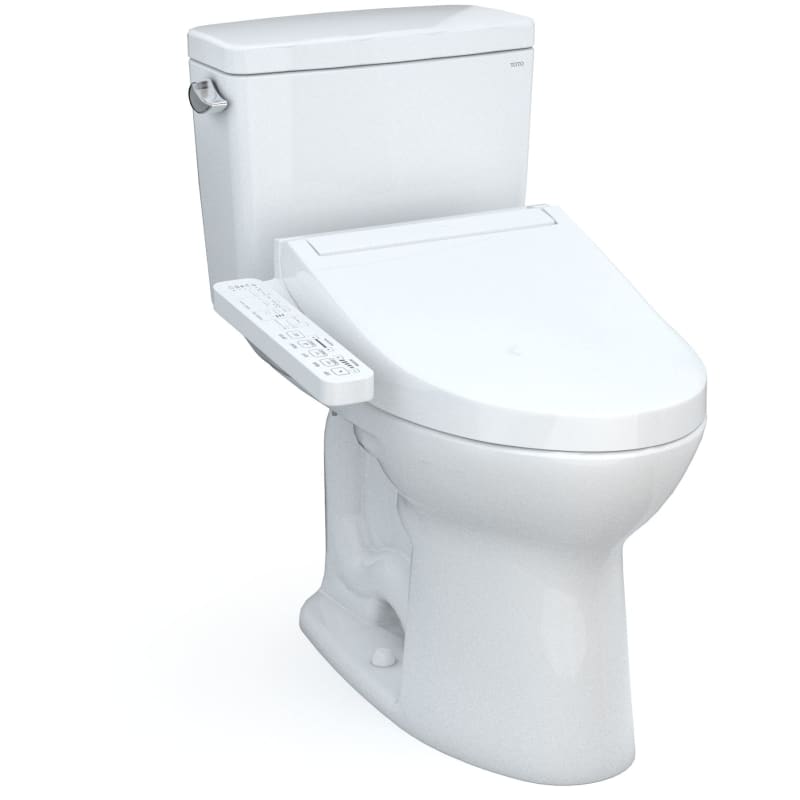

The TOTO® Drake® WASHLET®+ two-piece elongated 1.6 GPF TORNADO FLUSH® toilet with C2 bidet seat is designed to conceal the WASHLET power cord and water supply hose for a seamless installation. Part of the newly redesigned C Series, the WASHLET C2 features a soft rear spray, rear cleanse, and front cleanse with the option of an oscillating stream. The temperature and pressure of the water are adjustable with three temperature settings and five pressure settings. The controls are located on a convenient arm control panel. The WASHLET features a heated SoftClose seat with three temperature settings. This WASHLET+ toilet includes the WASHLET, Drake bowl and tank set with hardware, and toilet bolt caps. compatible with T40 WASHLET+ electronic bidet seat and toilet bowl components only. Additional items needed for installation must be purchased separately: wax ring, toilet mounting bolts, and toilet water supply lines.
TOTO MW7763074CSG Features:
Covered under TOTO’s 1 year limited warranty
Coordinates with products from the Drake line seamlessly
Two-piece configuration allows for easier access to the area around the toilet
Installs in a floor mounted configuration
Elongated bowl provides extra comfort, extending out an extra 1-1/2″ compared to a round configuration
Left hand trip lever placement
Constructed of vitreous china ensuring durability and dependability
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Bidet seat included with this product
All hardware required for installation is included
TOTO MW7763074CSG Technologies and Benefits:
WASHLET®+: WASHLET and toilet set with a concealed connection that is specially designed for a seamless installation.
PREMIST®: Using the incoming water supply, a Premist sprays the toilet bowl surface aiding in the elimination of waste approximately 80 percent better than a dry bowl.
EWATER+®: EWATER+® cleans the wand and toilet bowl where waste and build up tend to accumulate and create stains that can become permanent. Using no chemicals or cleaning agents, EWATER+ provides peace of mind everyday that microscopic build up has no place to hide.
SoftClose® Seat: The seat and lid utilize a built-in SoftClose® hinge system, which lowers the seat and lid down to the bowl gently and quietly.
CEFIONTECT®: The nano-scale glaze that creates a super-smooth, ionized barrier, which prevents particles from adhering to porcelain, reducing the need for harmful cleaning agents.
TORNADO FLUSH®: The TORNADO FLUSH® features two powerful nozzles that create a centrifugal, cyclonic rinsing action which reduces waste buildup and keeps the bowl cleaner. Using only 1.28 gallons per flush, this high-efficiency system is more effective in one flush than most toilets are with multiple flushes. The modern hole-free rim design means that it performs more consistently and is easy to clean.
Bidet Seat Features:
Built-in heated seat function
The soft-close lid forces a gentle descent, ensuring the lid will not slam shut
Bidet features electronic controls for ease of use
Warm air dryer helps cut down on tissue use
TOTO MW7763074CSG Specifications:
Overall Height: 29″ (bottom of the base to the highest point on the toilet)
Overall Depth: 28-5/16″ (furthest point back to front of toilet)
Overall Width: 17-3/16″ (furthest point left to furthest point right)
Bowl Height: 14-15/16″ (floor to the top of the bowl)
Flow Rate: 1.6 gallons-per-flush
Trapway (Discharge Passageway) Size: 2-1/8″
Rough-In: 12″
Bidet Seat Specifications:
Width: 17-3/16″ (left to right)
Height: 29″ (top to bottom)
Control Type: Fixed panel
Dimensions and Measurements
Bowl Height
14.9375 in.
Depth
28.3125 in.
Flush Valve Size
3 in.
Gallons Per Flush
1.6
Height
29 in.
Product Weight
89 lbs.
Rough In
12 in.
Trapway
2.125 in.
Width
17.1875 in.
Included Components
Bidet Seat Included
Yes
Seat Included
Yes
Characteristics and Features
Bowl Shape
Elongated
Configuration
Two Piece
Design Features
Glazed Trapway, Soft Close
Electronic
Yes
Flush Type
Gravity Flush
Installation Type
Floor Mounted
Material
Vitreous China
Seat Front
Closed
Tech Features
Heated Seat
Theme
Modern
Trip Lever Placement
Left
Water Efficient
No
Manufacturer Technology
Flush Technology
Tornado Flush
Warranty and Product Information
ADA
No
Approved for Commercial Use
Yes
CA Drought Compliant
No
Collection
Drake
Country Of Origin
Malaysia, Mexico, USA, Vietnam
Lead Leaching Certified NSF/ANSI 61
N/A (Regulation does not apply)
Manufacturer Warranty
1 Year Limited
TX Drought Compliant
No
